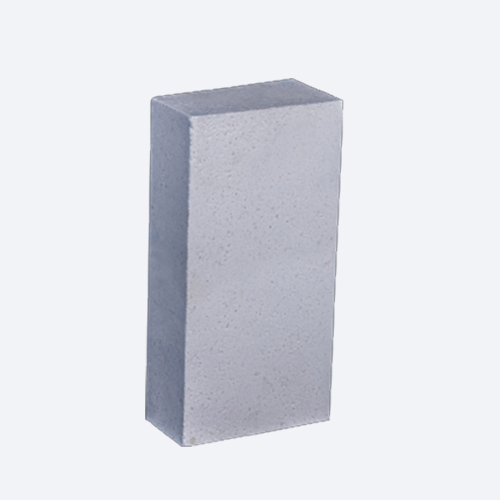

Fused Corundum Brick Introduce
Fused corundum brick is made of industrial alumina and quartz powder, which is processed in the arc furnace by melting, and then through casting, annealing and the final mechanical process, being produced into the required shape and size.
Corundum Brick Classification
Corundum Brick includes two types of Sintered Corundum Brick and Fused Cast Corundum Brick.
Sintered Corundum Brick adopts sintered alumina as the raw material through sintering process.
Fused Cast AZS Brick can be made of fused alumina as the raw material through process method of sintering.
And also can use phosphoric acid or other adhesive to make Unburnt Corundum Brick.
Corundum Brick Manufacturing Process
Corundum Bricks include Fused Cast Corundum Brick, Fused Alumina Corundum Brick and Sintered Corundum Brick. Fused Cast Corundum Brick is manufactured with commercial alumina and little sodium carbonate and quartz powder fusing in the quartz powder and through process of casting and annealing, and then form the shape and size through machining.
Fused Alumina Corundum Brick is made of fused alumina particle and fines adding little fireclay and binding agent through molding by brick machine after mulling. The density of green brick is about 2.75~2.85g/cm3. After drying the bricks are fired in the temperature of 1700~1800℃.
Fused Corundum Bricks Specifications
Item |
Fused Cast Alumina |
Fused Cast Alumina |
Fused Cast Alumina |
a-b Alumina |
a-Alumina |
b-Alumina |
Chemical Composition |
Al2O3 |
94 |
98.5 |
93 |
SiO2 |
1 |
0.4 |
- |
NaO2 |
4 |
0.9 |
6.5 |
Other oxides |
1 |
0.2 |
0.5 |
Crystallograghic
Analysis % |
a-Al2O3 |
44 |
90 |
- |
Vitreous |
55 |
4 |
99 |
Vitreous Phase |
1 |
6 |
1 |
Application of Corundum Brick
1.Blast Furnace
2.Hot Blast Stove
3.Refining Furnace
4.Glass Furnace
5.Petrochemical Industrial Furnaces
6.All kinds of high temperature kiln lining in metallurgical industry
