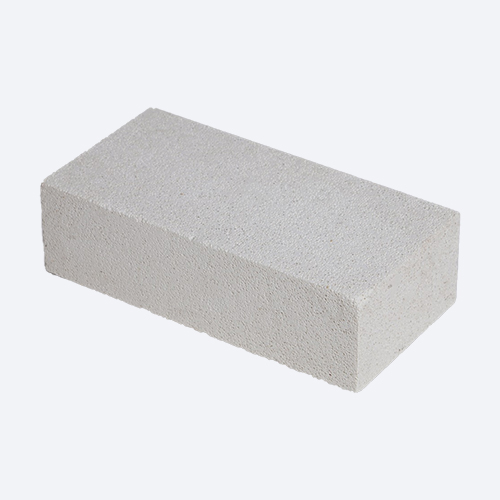

JM23 Mullite Insulation Brick

JM23 Mullite Insulation Brick Introduce

JM23 Insulation Brick, using high pure mullite as raw material, is made by adding alumina powder according to different type and then sintering in high temperature. JM insulating brick is the new energy saving material for insulation. JM23 insulation brick are produced accordance with German industrial standard that especially for export to foreign countries.

Application of JM23 Mullite Insulation Brick

JM23 Insulation Brick are widely used for heat-insulating purpose in many kinds of industrial furnace, electric furnace and metallurgical stove,Cracking furnace in petroleum, Hot blast furnace in metallurgy,Ceramic roller kiln, tunnel kiln, shuttle kiln for electrical porcelain,Pot furnace for glass industry, Inner lining of kinds of electrial furnaces and high temperature equipment.

JM23 Mullite Insulation Brick Technical Data


JM Series Insulating Firebrick Performance Parameter
Items		FJM23L	FJM-23	FJM-25	FJM-26	FJM-28	FJM-30	FJM-32
Classification Temperature (℃)		1260	1260	1350	1430	1540	1600	1650
Bulk Density (kg/m3)		500	550	800	780	880	1000	1200
Cold Crushing Strength (MPa)		1.2	1.3	1.8	2.5	2.8	3.0	3.8
Modulus of Rupture (MPa)		0.9	1.0	1.2	1.4	1.7	1.8	2.0
Reheating Linear Change (%) @℃×12h		-0.3 (1230)	-0.2 (1230)	-0.5 (1350)	-0.6 (1400)	-0.8 (1500)	-0.8 (1600)	-0.7 (1650)
Thermal Conductivity (W/m.K)	400℃	0.17	0.19	0.21	0.21	0.30	0.40	0.43
	600℃	0.19	0.23	0.27	0.27	0.32	0.42	0.50
	800℃	0.22	0.24	0.30	0.30	0.35	0.44	0.51
	1000℃	0.24	0.25	0.32	0.32	0.38	0.45	0.53
	1200℃	--	--	--	0.35	0.39	0.47	0.55
Chemaical Composition (%)	Al2O3	42	45	45	55	65	72	75
	SiO2	54	54	51	41.5	32.5	25.7	23
	Fe2O3	0.8	0.8	0.9	0.8	0.6	0.5	0.4
	Ti02	1.2	1.2	1.3	1.0	0.7	0.7	0.6
	Cao+Mg0	0.7	0.7	0.7	0.7	0.5	0.5	0.3
	Na2O+k2O	1.3	0.3	1.1	1.0	0.9	0.8	0.7
Remarks:		All data above are average test relusts, which can be adjusted according to application request. For more information, contact our sales engineer.
