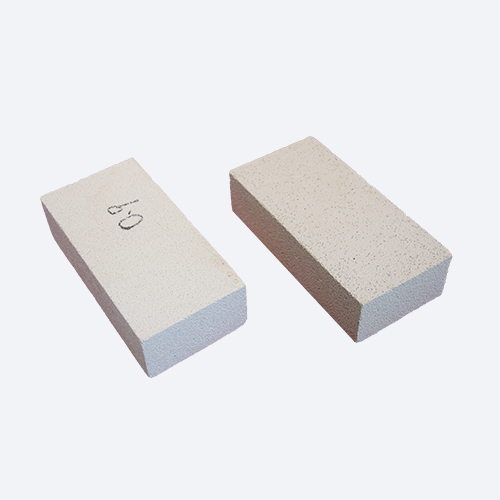

JM30 Insulation Brick

JM30 Insulation Brick Introduce

JM30 Insulation Bricks are made from high-purity refractory clays with gradually increasing aluminum oxide content and are carefully saturated with organic filling, which then burns out during the production process, resulting in a homogeneous, controlled porous structure. To achieve required tolerance, all six walls of each brick are mechanically processed.

Application of JM30 Insulation Brick

JM30 Insulation Brick should be used as the first layer of a refractory lining or as back insulating layer behind all other refractory layers in furnaces, bakes, fire channels, refining chambers and heat furnaces, regenerators, gas production plants and conduits, intended furnaces, stress-relieving furnaces, reactor chambers and similar high-temperature industrial devices.

JM30 Insulation Brick Technique Data

JM Series Insulating Firebrick Performance Parameter
Items		FJM23L	FJM-23	FJM-25	FJM-26	FJM-28	FJM-30	FJM-32
Classification Temperature (℃)		1260	1260	1350	1430	1540	1600	1650
Bulk Density (kg/m3)		500	550	800	780	880	1000	1200
Cold Crushing Strength (MPa)		1.2	1.3	1.8	2.5	2.8	3.0	3.8
Modulus of Rupture (MPa)		0.9	1.0	1.2	1.4	1.7	1.8	2.0
Reheating Linear Change (%) @℃×12h		-0.3 (1230)	-0.2 (1230)	-0.5 (1350)	-0.6 (1400)	-0.8 (1500)	-0.8 (1600)	-0.7 (1650)
Thermal Conductivity (W/m.K)	400℃	0.17	0.19	0.21	0.21	0.30	0.40	0.43
	600℃	0.19	0.23	0.27	0.27	0.32	0.42	0.50
	800℃	0.22	0.24	0.30	0.30	0.35	0.44	0.51
	1000℃	0.24	0.25	0.32	0.32	0.38	0.45	0.53
	1200℃	--	--	--	0.35	0.39	0.47	0.55
Chemaical Composition (%)	Al2O3	42	45	45	55	65	72	75
	SiO2	54	54	51	41.5	32.5	25.7	23
	Fe2O3	0.8	0.8	0.9	0.8	0.6	0.5	0.4
	Ti02	1.2	1.2	1.3	1.0	0.7	0.7	0.6
	Cao+Mg0	0.7	0.7	0.7	0.7	0.5	0.5	0.3
	Na2O+k2O	1.3	0.3	1.1	1.0	0.9	0.8	0.7
Remarks:		All data above are average test relusts, which can be adjusted according to application request. For more information, contact our sales engineer.
